WIT Security Technology Co., Ltd.

WIT Surveillance Camera

WIT Surveillance Camera

Surveillance Camera

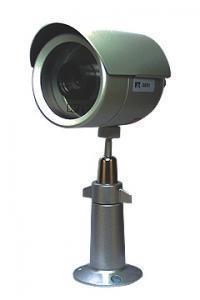

Product ID: WIT-3171SX

WIT Surveillance Camera

  1. All series using Sony CCD board.
  2. Low Illumination, high resolution with color images.
  3. IP68 waterproof.
  4. Well heat dissipation design patented in various countries, provide electronic components longer life span.
  5. Taiwan patent no. I257991/I260950.
  6. High quality clear night vision images.
  7. High contrast clear images with AGC.
  8. Clear images in short distance while IR on without exposure.
  9. Auto white balance.
  10. Provide high quality with good price.
  11. All MIT.
»  Specifications:

Picture Elements HxV

NTSC:811(H)*508(V); PAL:795(H)*596(V)

Frequency

NTSC: 15,734 KHz(H) *59.94Hz(V)
PAL: 15,625 KHz(H)*50Hz(V)

Electronic Shutter

Auto, Rang: 1/50 (1/60) ~ 1/100,000 sec.

Auto White Balance

Auto White Balance

S/N Ratio

More than 50 dB (AGC off)

Gamma

0.45

Auto Gain Control

Auto

Video Output

1 Vp-p, 75 Ohms

Synchronization

Internal

Power Supply

DC 12V (+/- 10%)

Storage Temperature

-20°C ~ +70°C

Operating Temperature

-10°C ~ +60°C

Operating Humidity

Under 90% Non-condensing

Storage Humidity

Under 95% Non-condensing





Model

Outside dia.

Chips

Lens (m/m)

Night Vision

WIT-3171SX

Ø71

1/3" Sony

6/8/12/16

no limit

Min. Illumination

Resolution

Power Consumption

0.1Lux

580 TV Line

110mA
